GraphWin Attributes and Parameters

In GraphWin node and edge attributes control how nodes and edges are drawn, and global parameters control the general behavior. Attributes and parameters can be changed either by setup panels or by the attribute and parameter operations of the programming interface.

Node Attributes

The attributes that control the drawing of nodes are: position, shape, width, height, color, pixmap, border color, border width, label type, user label, label position, and label color. For details on the different attributes see the LEDA Book or the Manual Page GraphWin.

On the right there is a screenshot of the node setup panel. Clicking on the picture shows the window in original size.

Graphwin Node Setup Panel

Edge Attributes

The attributes that control the drawing of edges are: shape, bends, direction, width, color, style, label type, user label, label position, label color and slider positions.

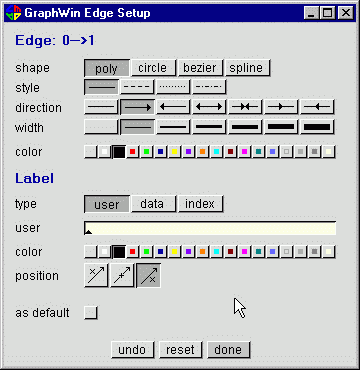

On the right there is a screenshot of the node setup panel. Clicking on the picture shows the window in original size.

Graphwin Edge Setup Panel

Global Parameters

A GraphWin has the window parameters background color, background pixmap, grid style, and grid distance and the following additional parameters.
  • flush: A parameter of type bool (default value: true) that controls whether changes of node and edge attributes are shown directly or not. If flush is false the changes are invisible until the next call of redraw().
  • animation steps: A parameter of type int (default value: 16) that defines the number of intermediate drawings used in an animation of layout changes and zoom operation. Setting the parameter to zero disables animation.
  • zoom objects: A parameter of type bool (default value: true). If this flag is true, the size of nodes and edges is adjusted automatically during zoom operations.
  • show status: A parameter of type bool (default value: true). If this flag is true, some selected parameters, e.g. the number of nodes and edges of the graph and the current position of the mouse pointer, is shown in a status line at the bottom of the display region.
