Example Triangulation

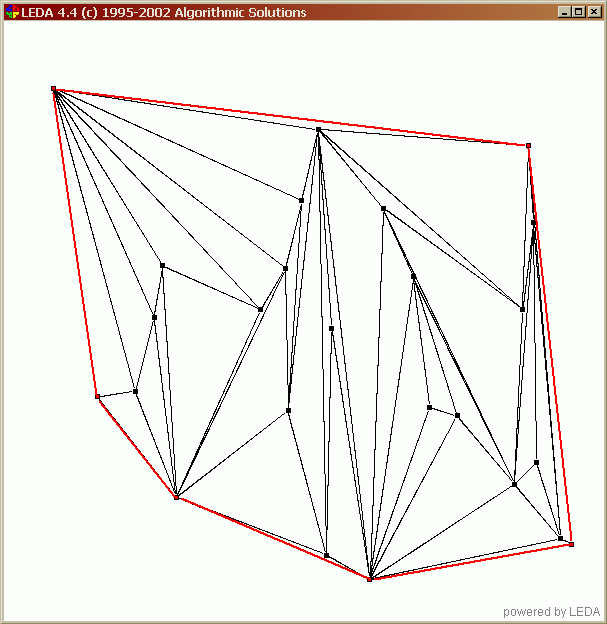

The following program generates a list L of 25 rat_points in the square (-100,-100,100,100) and computes a triangulation of L represented by the parametrized graph G. It also calls Is_Triangulation() to verify the result. Then it draws the points of L and edges of the triangulation in black. Finally it shows the convex hull by drawing the points and edges on the convex hull in red. On the right there is a screenshot of the program. Clicking on the picture shows the window in original size.

#include <LEDA/core/list.h>
#include <LEDA/geo/rat_point.h>
#include <LEDA/geo/random_rat_point.h>
#include <LEDA/graphics/window.h>
#include <LEDA/geo/geo_alg.h>

using namespace leda;

int main()
{
  list<rat_point> L;
  random_points_in_square(25,100,L);

  GRAPH<rat_point,int> G;

  edge edgeOnConvexHull=TRIANGULATE_POINTS(L,G);

  if (Is_Triangulation(G)) std::cout << "G is a Triangulation\n";
  else std::cout << "WARNING: G is no Triangulation!\n";

  window W;
  W.init(-110,110,-110);
  W.open(); W.display();
  W.set_node_width(2);

  rat_point p;  //draw points in L
  forall(p,L) {W.draw_filled_node(p.to_point(),black);}
  W.read_mouse();

  edge e;
  forall_edges(e,G) {
    point p=G[G.source(e)].to_point();
    point q=G[G.target(e)].to_point();
    W.draw_edge(p,q);
  }
  W.read_mouse();

  W.set_line_width(2);
  e=edgeOnConvexHull;
  do {
    point p=G[G.source(e)].to_point();
    point q=G[G.target(e)].to_point();
    W.draw_filled_node(p.to_point(),red);
    W.draw_edge(p,q,red);
    e=G.face_cycle_succ(e);
  } while (e!=edgeOnConvexHull);
  W.read_mouse();

  W.screenshot("triangulation");

  return 0;
}
