Extremal Circles

The functions discussed here are direct applications of Voronoi diagrams.

Smallest Enclosing Circle

The smallest enclosing circle for a set `L` of points is the circle with the smallest radius containing all points in `L`. Such a circle has at least two points in `L` on its boundary and its center lies on the furthest site Voronoi diagram of `L`.
The center is either a vertex of the furthest site Voronoi diagram (three vertices of `L` on its boundary) or lies on an edge (two sites on the boundary).

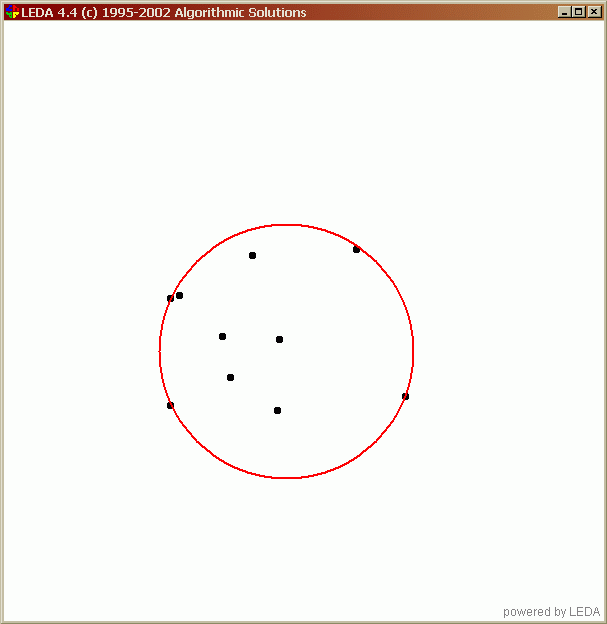

On the right you see a smallest enclosing circle of a set of 10 points in the plane. The picture is a screenshot from the program below.

Largest Empty Circle

The largest empty circle for a set `L` of points is the circle with the largest radius whose interior is void of points in `L` and whose center lies inside the convex hull of `L`. Such a circle has at least two points in `L` on its boundary and its center lies on the nearest site Voronoi diagram of `L`.
The center of the circle is either a vertex (three vertices of L on its boundary) or lies on an edge of the Voronoi diagram (two sites on the boundary).

On the right you see a largest circle of a set of 10 points in the plane. The picture is a screenshot from the program below.

All Empty Circles

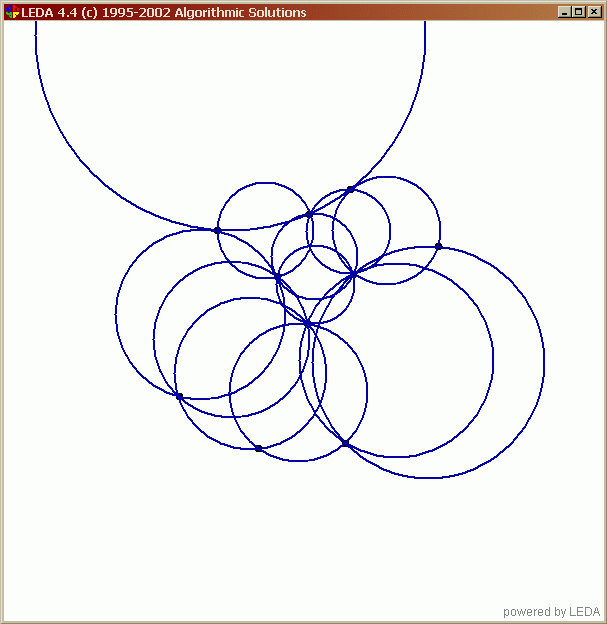

LEDA also provides functions to compute the list `CL` of all enclosing (picture on the left) and all empty (picture on the right) circles passing through three or more points of `L`.

Example Program for Computing Extremal Circles

The following program computes the extremal circles and was used to generate all pictures above.

```#include <LEDA/core/list.h>
#include <LEDA/geo/rat_point.h>
#include <LEDA/geo/rat_circle.h>
#include <LEDA/geo/random_rat_point.h>
#include <LEDA/graphics/window.h>
#include <LEDA/geo/geo_alg.h>

using namespace leda;

int main()
{
list<rat_point> L;
random_points_in_square(10,50,L);

rat_circle C;
//C=SMALLEST_ENCLOSING_CIRCLE(L);
//C=LARGEST_EMPTY_CIRCLE(L);

list<rat_circle> LC;
ALL_ENCLOSING_CIRCLES(L,LC);
//ALL_EMPTY_CIRCLES(L,LC);

window W;
W.init(-110,110,-110);
W.open(); W.display();
W.set_node_width(3);
W.set_line_width(2);

rat_point p;
forall(p,L) W.draw_filled_node(p.to_point());
//W.draw_circle(C.to_circle(),red);
forall(C,LC) W.draw_circle(C.to_circle(),red);
W.read_mouse();
W.screenshot("extremal_circle");

return 0;
}	     ```
