Example Minkowski Sums

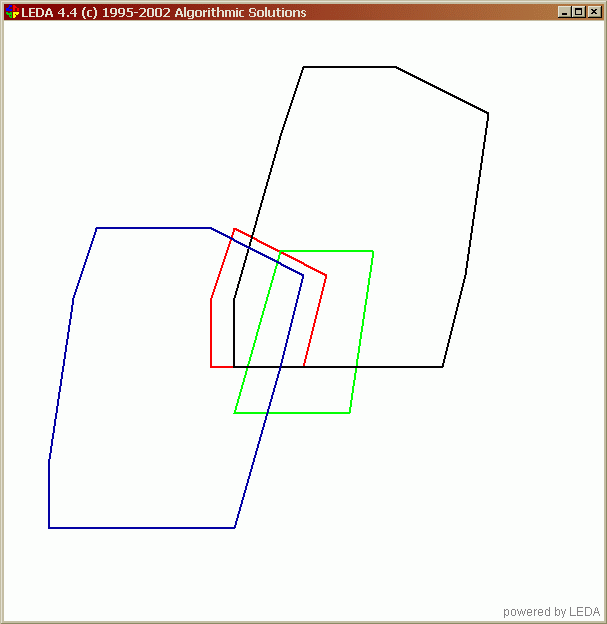

The following program generates two simple polygons P1 and P2 and computes the Minkowski sum GPSUM and the Minkowski difference GPDIFF. Then it draws P1 in red and P2 in green GPSUM in black and GPDIFF in blue. On the right there is a screenshot of the program. Clicking on the picture shows the window in original size.

#include <LEDA/core/list.h>
#include <LEDA/geo/rat_point.h>
#include <LEDA/geo/rat_segment.h>
#include <LEDA/geo/rat_gen_polygon.h>
#include <LEDA/graphics/window.h>
#include <LEDA/geo/geo_alg.h>

using namespace leda;

int main()
{
  list<rat_point> L1;
  L1.push(rat_point(0,10)) ;L1.push(rat_point(0,25));
  L1.push(rat_point(5,40)); L1.push(rat_point(25,30));
  L1.push(rat_point(20,10));
  rat_polygon P1(L1);

  list<rat_point> L2;
  L2.push(rat_point(5,0));   L2.push(rat_point(15,35));
  L2.push(rat_point(35,35)); L2.push(rat_point(30,0));
  rat_polygon P2(L2);

  rat_gen_polygon GPSUM=MINKOWSKI_SUM(P1,P2);
  rat_gen_polygon GPDIFF=MINKOWSKI_DIFF(P1,P2);

  window W;
  W.init(-45,85,-45);
  W.open(); W.display();
  W.set_line_width(2);

  W.draw_polygon(P1.to_polygon(),red);
  W.draw_polygon(P2.to_polygon(),green);
  W.read_mouse();
  W.draw_polygon(GPSUM.to_gen_polygon());
  W.read_mouse();
  W.draw_polygon(GPDIFF.to_gen_polygon(),blue);
  W.read_mouse();

  W.screenshot("minkowski_sum");

  return 0;
}
